MECHANICAL TESTS

Contact

Laboratory has been accredited by Romanian Accreditation Association - RENAR
according to ISO/IEC 17025.

Annex to the accreditation certificate

• Mechanical and thermo-mechanical tests for insulators and bushings

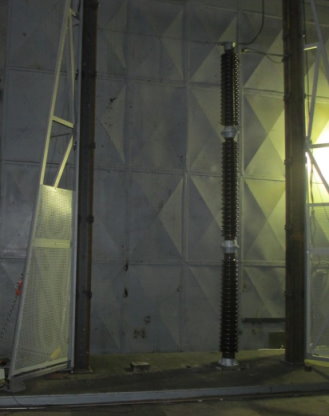

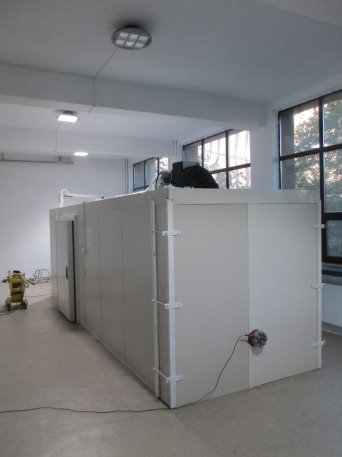

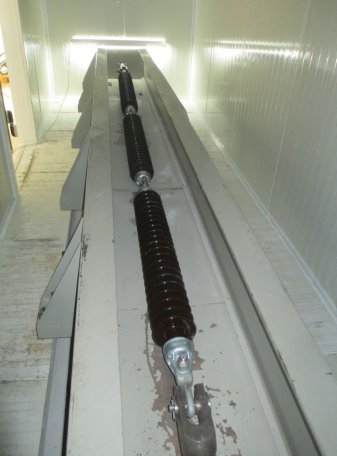

Static testing machine at tensile force for large insulators in ambient conditions
and in thermostatic enclosure 24 m3

- insulators length: up to 5000 mm

- temperature range: -35°C … +50°C

- tensile force: 0 … 300 kN

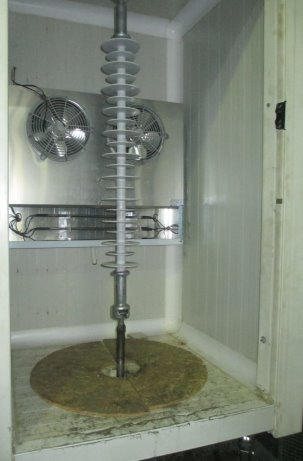

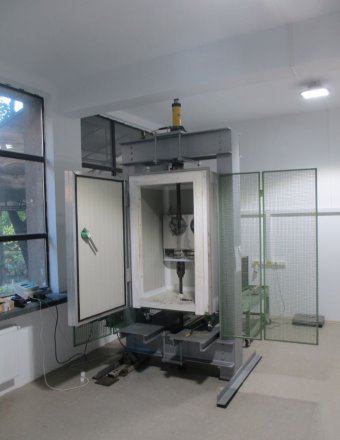

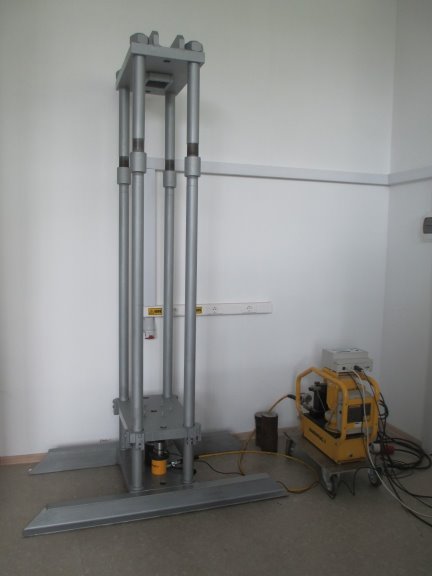

Static testing machine at tensile or bending force for insulators in ambient conditions
and in thermostatic enclosure 1.5 m3

- insulators length for tensile test: up to 1200 mm

- insulators length for bending test: up to 500 mm

- temperature range: -35°C … +50°C

- tensile/compression force: 0 … 300 kN

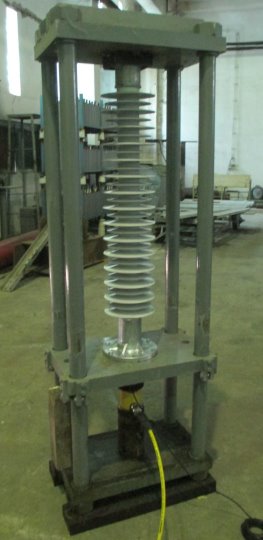

Static testing machine at compression and buckling (0 … 200 kN)
for insulators length up to 2000 mm

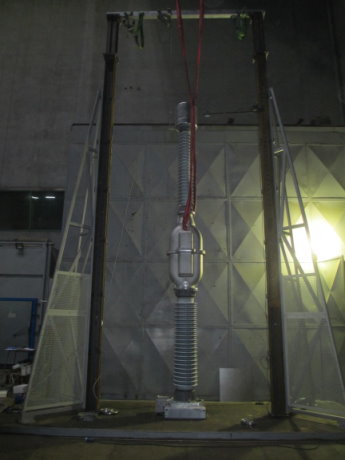

STAND FOR MECHANICAL TESTS

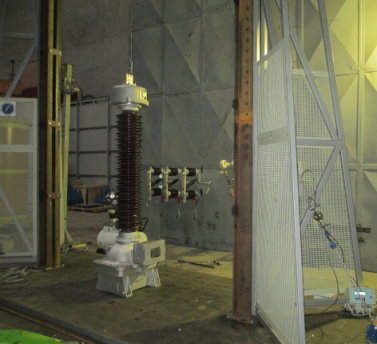

• Mechanical tests for instrument transformers with voltage levels up to 550 kV

- Maximum height: 7 m

- Maximum force: 5000 N

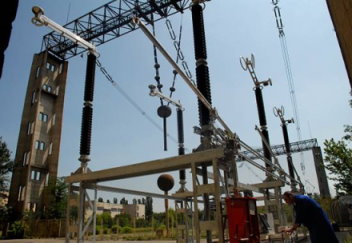

• Operating and mechanical endurance tests for AC disconnectors
with voltage levels up to 550 kV

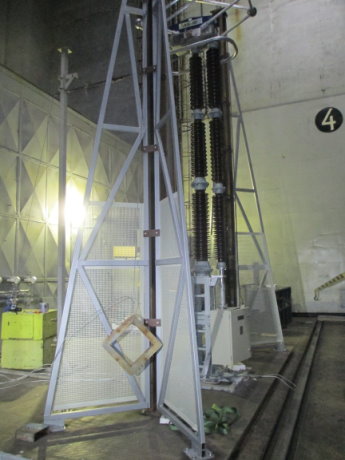

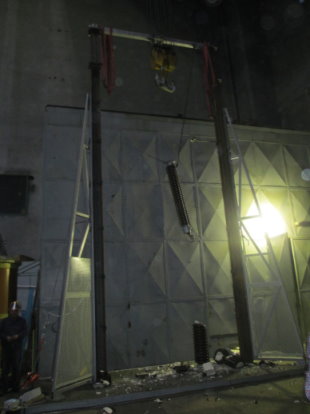

• Mechanical tests at torsion and bending for long length insulators

• Verification of protection provided by the enclosures of LV and HV switchgear

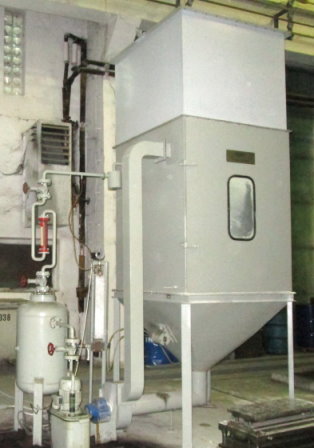

- Verification of the degree of protection provided by enclosure (maximum IP 66)

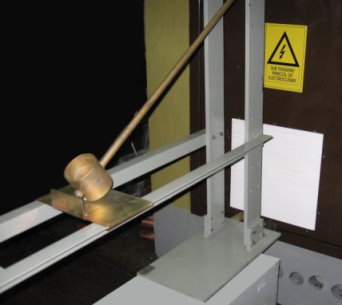

- Verification of the protection against mechanical impacts (maximum 50 J)

Contact: eng. Alin Neagoe

phone: 0351 404888; 0351 404889
FAX: 0351 404890
e-mail: neagoealin@icmet.ro

• Mechanical and thermo-mechanical tests for insulators and bushings

Static testing machine at tensile force for large insulators in ambient conditions and in thermostatic enclosure 24 m3 - insulators length: up to 5000 mm - temperature range: -35°C … +50°C - tensile force: 0 … 300 kN

Static testing machine at tensile or bending force for insulators in ambient conditions and in thermostatic enclosure 1.5 m3 - insulators length for tensile test: up to 1200 mm - insulators length for bending test: up to 500 mm - temperature range: -35°C … +50°C - tensile/compression force: 0 … 300 kN

Static testing machine at compression and buckling (0 … 200 kN) for insulators length up to 2000 mm

• Mechanical tests for instrument transformers with voltage levels up to 550 kV

- Maximum height: 7 m - Maximum force: 5000 N
• Operating and mechanical endurance tests for AC disconnectors with voltage levels up to 550 kV

• Mechanical tests at torsion and bending for long length insulators

• Verification of protection provided by the enclosures of LV and HV switchgear

- Verification of the degree of protection provided by enclosure (maximum IP 66) - Verification of the protection against mechanical impacts (maximum 50 J)
